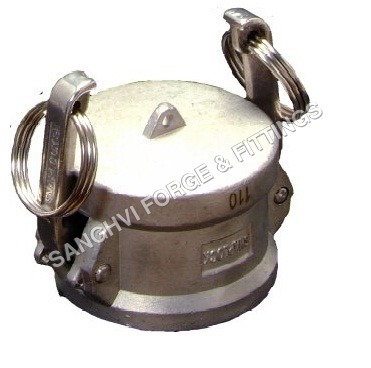

Type Dc Dust Caps For Use With Adaptors

Type Dc Dust Caps For Use With Adaptors
Type Dc Dust Caps For Use With Adaptors
Product Code : SFF TYPE DC
Brand Name : SANGHVI
Product Specifications
  • Product Type
  • Coupling
  • Material
  • Stainless Steel
Product Description

SR.No.

SIZE

A

B

C

D

1

1/2″

117.0

60.0

46.0

38.0

2

3/4″

117.0

60.0

46.0

38.0

3

1″

135.0

69.0

51.0

41.0

4

1 1/4″

177.0

80.0

54.0

44.0

5

1 1/2″

149.0

87.0

57.0

47.0

6

2″

159.0

97.0

65.0

54.0

7

2 1/2″

207.0

111.0

70.0

54.0

8

3″

253.0

137.0

70.0

59.0

9

4″

278.0

162.0

74.0

61.0

10

5″

305.0

189.0

75.0

62.0

11

6″

413.0

260.0

85.0

71.0

All dimensions are in mm
Due to ongoing development dimensions may change

All the above couplings conform to DIN 2828 / MIL – C – 27487

Sizes

1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″

Working Pressure

5Kg/cm2 to 20 Kg/cm2 ( Working pressure varies according to the size of coupling)

Material
